Voyager Quad-View Switcher
Available from Bus Electronics
Expand your current Voyager system, or build a custom multi-camera system based upon this device.

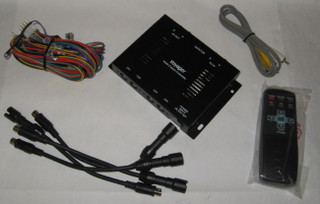

This unique device allows you to switch between up to five video input devices. It is specifically designed to connect to (and power) up to four Voyager cameras via Voyager-specific "CEC" connectors -- up to three of those cameras can be Voyager's (now-obsolete) motorized-tilting cameras. It has a fifth RCA-type A/V input for brining an auxilliary audio/video device into the system. The output is via RCA-type A/V cables, which can be connected or adapted most LCD monitors.
The four cameras can be displayed simultaneously in a Quad configuration, two pre-selected cameras can be viewed side-by-side, or each camera can be individually displayed full-screen. The processor includes a toggle wire for each of the four cameras. When a specific camera's toggle wire is energized (via 12-volts), that camera will be displayed full screen until the toggle is de-energized. The toggle circuitry has a selectable off-delay to allow it to ride through the off cycle of a pulsing input -- such as a turn signal. The system can also be manually controlled via a hand-held wireless remote control.
This item replaced switcher# CSW5000Q
